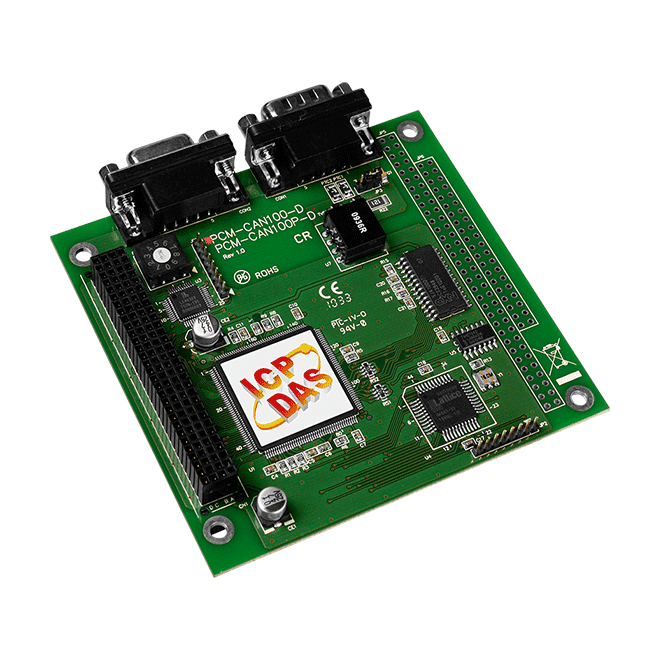

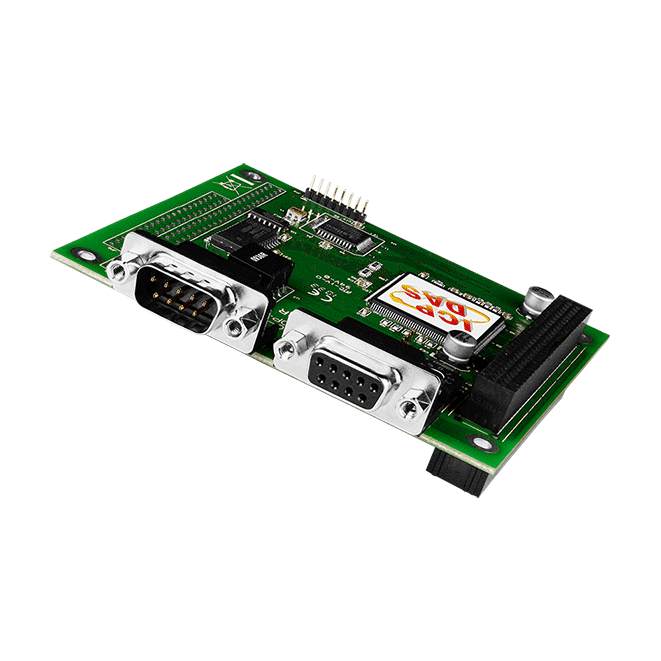

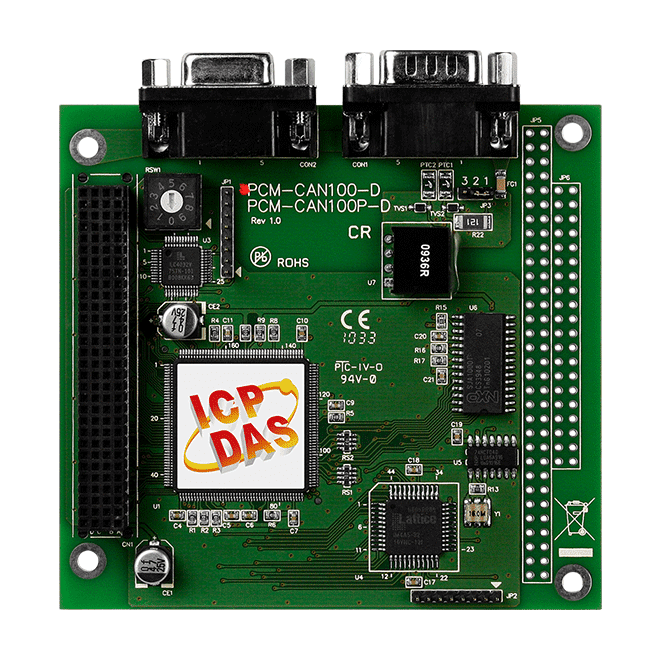

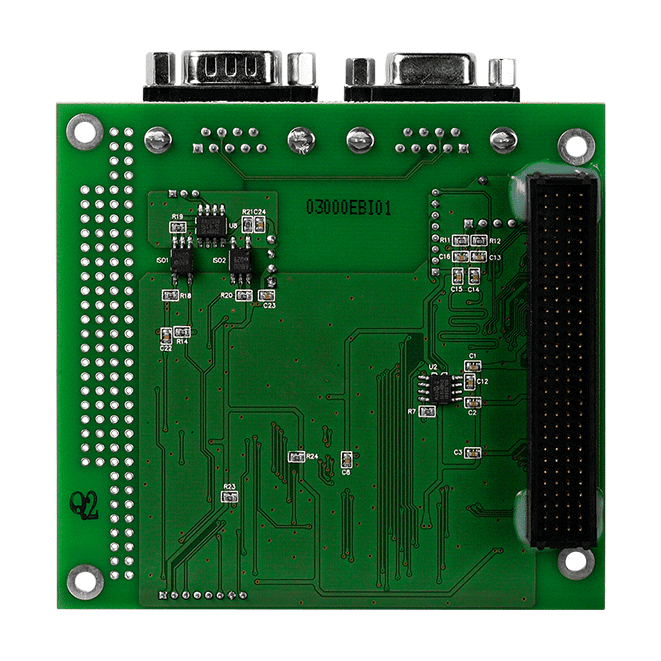

Card PCI-104 1 cổng CAN ICP DAS PCM-CAN100-D CR
Features
- PCI-104 compliant
- 9-pin D-sub connector
- Compatible with CAN 2.0 parts A and B
- Fully compatible with ISO 11898-2 standard
- Support CAN bard from 10K to 1M bps
- 2500 Vrms photo couple isolation on the CAN bus
- Built-in jumper to select 120 ohm terminal resister
- 1KV galvanic isolation
- 1 CAN channel
- Direct memory mapping to the CAN controller
Introduction

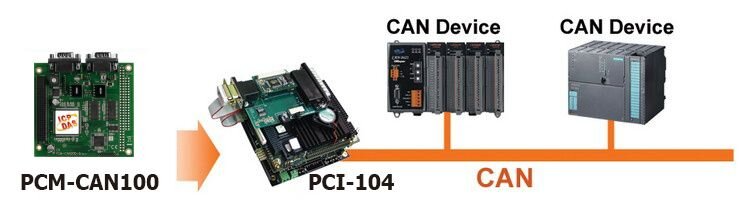

PCM-CAN100-D can represent a CAN solution on a high quality PCI-104 hardware in industrial environment compliant with CAN 2.0A and CAN 2.0B specification. It has 2 independent CAN bus communication ports with 9-pin D-sub connector, and has the ability to cover a wide range of CAN applications.
Besides, PCM-CAN100-D uses the CAN controller Phillips SJA1000T and transceiver 82C250/251, which provide bus arbitration, error detection with auto correction and re-transmission function. It can be installed in a 5V PCI slot and supported truly “Plug & play”.
