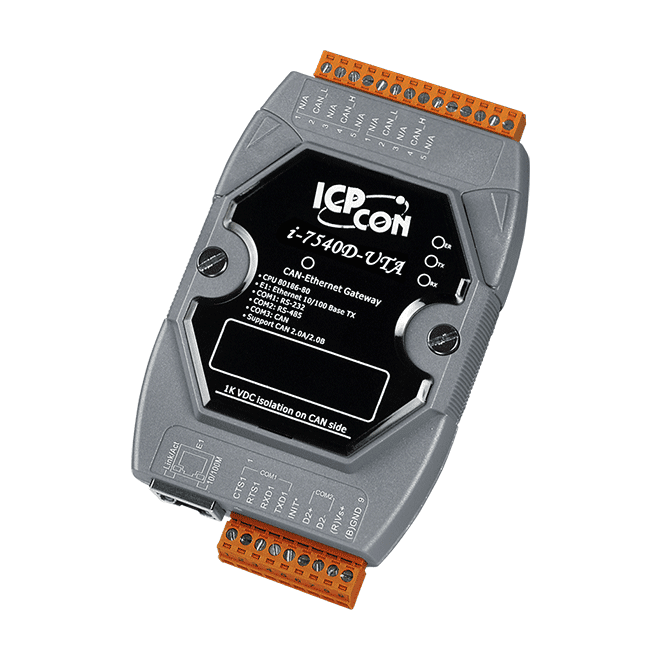

Bộ chuyển đổi CAN sang Ethernet ICP DAS I-7540D-UTA-G CR
Features
- Compatible with the ISO 11898-2 standard
- Compatible with CAN specification 2.0A and 2.0B
- Support Web Configuration
- Support Virtual COM technology
- Max transmission speed up to 1M bps for CAN and 115.2kbps for RS-232 & RS-485
- Message transmitted by using TCP/IP protocol and maximum 25 Ethernet client connections
- Jumper selectable for 120Ω terminal resistor for CAN channel
- Wide Operating Temperature Range: -40 ~ +75°C
Introduction
The I-7540D series are CAN to Ethernet converters, and are usually applied as an Ethernet to CAN/RS-232/485 Device Server. They support socket access functions and virtual COM port technology which helps users to get the CAN, RS-232, RS-485 data via virtual COM port. The I-7540D series also provide transparent mode, which enables CAN networks to be coupled together over the Internet/Ethernet, whereby remote monitoring and control is possible. By the features of tiny operating system, protocol independence, small casing and flexibility, it is able to widely fit various RS-232, RS-485 and CAN applications.
