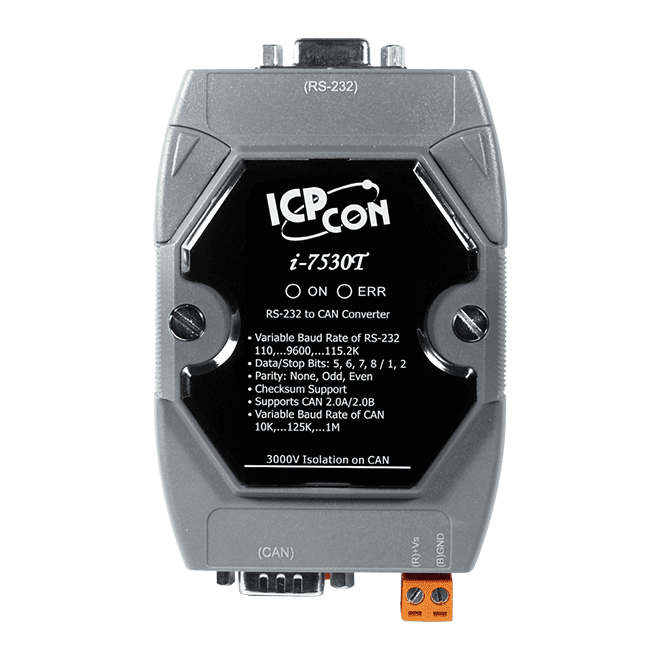

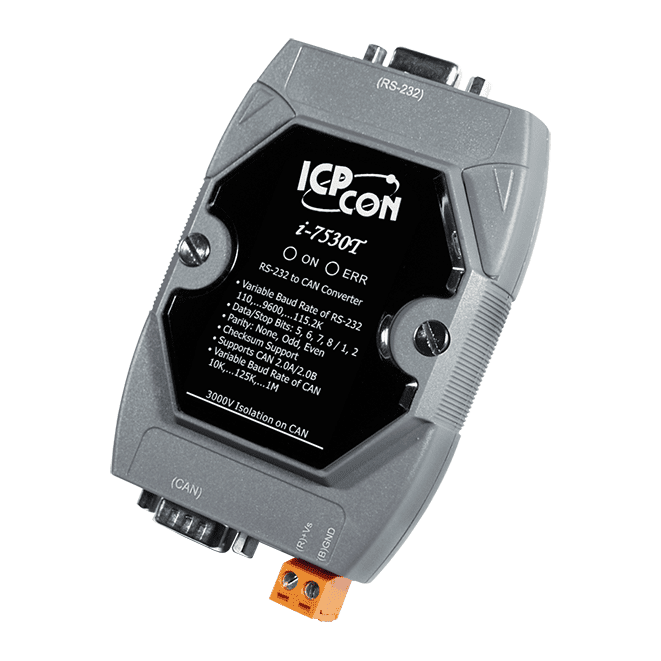

Bộ chuyển đổi RS-232 sang CAN ICP DAS I-7530T-G CR
I-7530T-G đã dừng, thay thế và nâng cấp thành I-7530-G CR
Features
- Compatible with CAN specification 2.0A and 2.0B
- Fully compatible with ISO 11898-2 standard
- Support various baud rate from 10K bps to 1M bps
- Jumper for 120 Ω terminal resistor
- Software configurable CAN and RS-232 communication parameters
- Power, data flow and error indicator for CAN and RS-232
- Watchdog inside
- Support transparent communication mode
- 1000 frames in CAN received buffer and 900 frames in RS-232 received buffer
- Full-duplex communication mode of RS-232 devices is not supported
Software Utility Features
- CAN bus Baud rate configuration
- CAN acceptance filter configuration
- CAN 2.0A or 2.0B specific selection
- RS-232 Baud rate and data bit setting
- RS-232 responded selection
- Easy test to transmit/receive can messages
- Setting for I-7530T communication mode (normal mode or pair connection mode)
Introduction
CAN (Controller Area Network) is a serial bus system especially suited to structure intelligent industry devices networks and build smart automatic control systems. The following figure shows the application architecture for I-7530T modules. The PC can be the CAN host, monitor or HMI to access/control the CAN device through the CAN network by the I-7530T Converters. The programmable RS-232 device (For example: I-8411/I-8431/I-8811/I-8831/W-8031/W-8331/W-8731 embedded controller) can use the serial port to connect to the CAN network via the I-7530T modules. In order to use the CAN network with traditional RS-232 devices, we provide a way to achieve this purpose. The I-7530T are designed to unleash the power of CAN bus via RS-232 communication method. It accurately converts messages between CAN and RS-232 networks. This module let you to communicate with CAN devices easily from any PC or devices with RS-232 interface.
Moreover, we expand the functionalities of I-7530T for some special application. In pair connection mode, I-7530/I-7530T/I-7530FT can be used to connect PC with other RS-232 devices at the same time. The application architecture may be as follows.
3000V isolation on CAN side
The CAN port of I-7530T is an isolated with 3000V isolation. This isolation can protect the local RS-232 devices from the damage signal coming from CAN network.
Watchdog inside
The watchdog is a hardware reset circuit to monitor the operation status. When working in harsh or noisy environment, the I-7530T may shut down by the external signal. The circuit may let the I-7530T to work continuously and never halt.
Power and Error indicator display
There are two indicators on the I-7530T. The power indicator can help user to check whether the I-7530T is standby or transmitting/receiving messages. The Error indicator will be turned on when some errors occur on the I-7530T.
