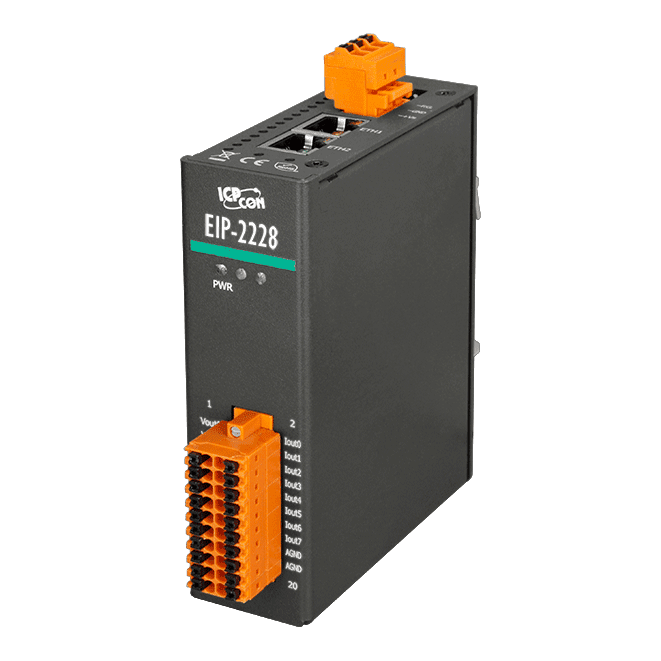

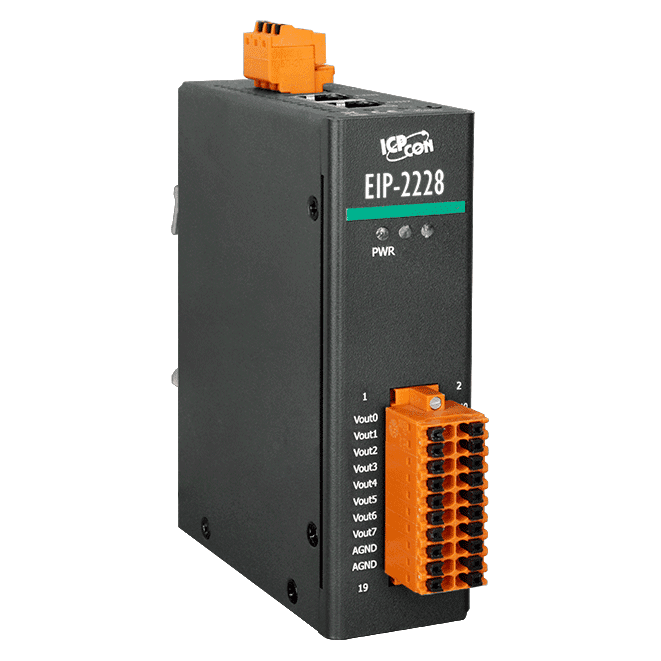

Module EtherNet/IP 8 kênh đầu ra tương tự AO ICP DAS EIP-2228 CR
Features
- Transfer protocol: EtherNet/IP
- Powerful 32-bit MCU handles efficient network traffic
- Support ARP,TCP, UDP, ICMP, DHCP, BOOTP and TFTP protocols
- Easy firmware update via Ethernet
- Analog Output 8 Channels
- 2-port Ethernet Switch (LAN Bypass) for Daisy-Chain Wiring
Introduction

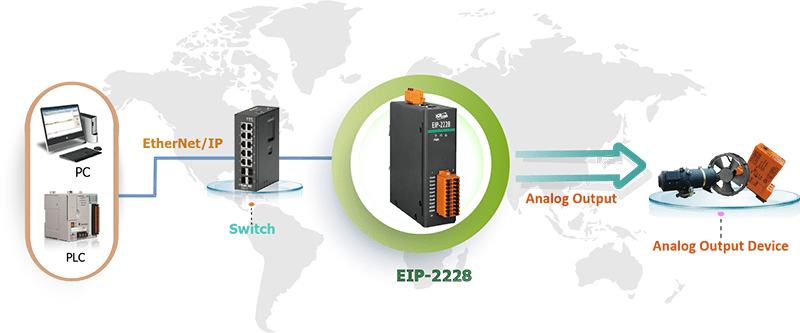

The EIP-2000 is an industrial remote I/O module series supporting the EtherNet/IP protocol. Users can seamlessly integrate these modules into the Ethernet network from the industrial floor to the enterprise. The EIP-2000 allows daisy chain connection which permits the flexibility in locating devices, eases installation and lowers infrastructure costs. All the modules can be deployed in the network topologies such as star, line or ring. The isolation design protects the EIP-2000 against the harmful interference. The EIP-2228 is an 8-ch AO module. It provides a variety of programmable analog output options (0 to 5 V, +/-5 V, 0 to 10 V, +/-10 V, 4 to 20 mA or 0 to 20 mA). With 2 Ethernet ports, the EIP-2228 allows daisy chain connection which permits flexibility in locating devices, eases installation, and lowers infrastructure costs. It features 4 kV ESD protection, 4 kV EFT protection, 2 kV surge, and 3000 VDC I/O isolation are also provided to enhance noise protection capabilities in industrial environments. The power-on value and safe value of AO are configurable. The Module is designed as an EtherNet/IP adapter. Users can obtain the output status as well as the connection status of the EIP-2228 by the LEDs indication. In addition, ICPDAS provides software utility to easily configure and test the EIP-2000 modules via Ethernet.
